Structa Light®

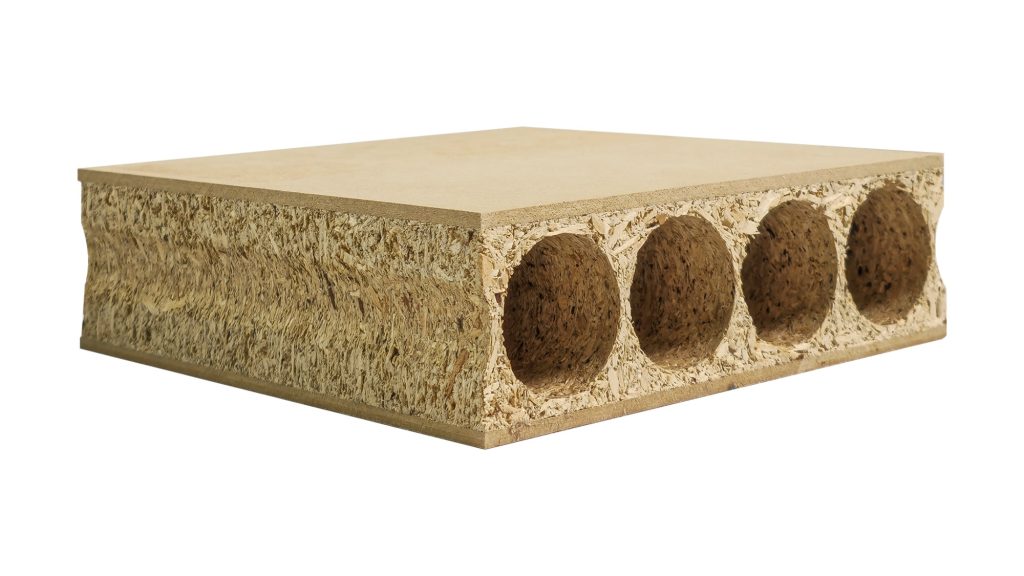

This exceptional material is built on a design principle that prioritizes a remarkable strength-to-weight ratio. Structa Light Lightweight Panels offers the benefits of outstanding impact resistance and minimal thickness swelling, making it a valuable choice for various applications.

This unique material has a design principal that gives a high strength to weight ratio with the advantages of great impact resistance and low thickness swelling
Easily apply face materials (veneer, laminate, and coatings)
Finish with a variety of edge options
Rigid face material supports selected methods of attachment
Optional skin thicknesses are available

Sizes Available

Select Thickness:

● 1-3/8", 1-5/8", 1-3/4", 2" and 2-1/4"

Select Length and Heights:

● 48 x 96
● Request custom Lengths and Heights

Doors
Work Surfaces
Furniture
Store Fixtures
Shelving
Displays
Architectural Panels
Suspended Panels

Formica Trade Show Booth

View Project

Technical Data

	Material Thickness
	1-3/8″	1-5/8″	1-3/4″	2″	2-1/4″
Skin Thickness	0.118″	0.240″	0.118″	0.240″	0.375″
Core Thickness	1.120″	1.120″	1.500″	1.500″	1.500″
Max Screw withdrawn Force, LBF	137	–	138	–	–
Max Screw Tensile Force, LBF	138	–	379	–	–
Max Tensile Strength, PSI	49	–	97	–	–
Comp, Strength @5% Strain, PSI	236	–	324	–	–
Max Flexure Force, LBF	218	–	270	–	–
Modulus of Rupture, PSI	1740	–	1740	–	–
Modulus of Elasticity, PSI	193483	–	19143	–	–
Weight per Panel, LB** ( 49 x 97)	116	138	125	147	181

Packaging Quantity Per Skid

	Material Thickness
Sheet Size	1-3/8″	1-5/8″	1-3/4″	2″	2-1/4″
48 X 96	34	30	27	24	20

* Testing conducted with Varianta Screw HC 013.30.900

** Actual measured weight may vary due to temperature and humidity.
Weight provided is for comparitive analysis only.
