1/8” Comb Light®

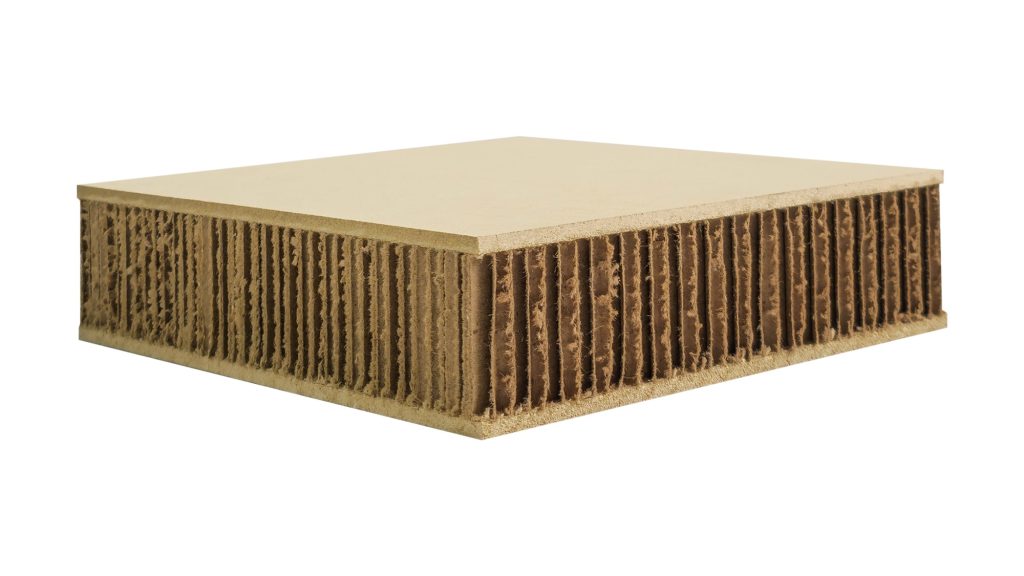

1/8” Comb Light wood panels are engineered with a high-density structural core, pushing the boundaries of lightweight technology. These Lightweight Panels are suitable for demanding applications, such as doors, signage, furniture, store fixtures, shelving, displays, work surfaces, and suspended ceiling panels.

High density structural core takes lightweight panels to the next level
Easily apply face materials (veneer, laminate, and coatings)
Finish with a variety of edge options
Rigid face material supports selected methods of attachment
Optional skin thicknesses are available
Versatility across industries

Sizes Available

Select Thickness:

● 3/4", 1”, 1-1/4”, 1-1/2", 1-3/4", 2” and up to 3-3/4”

Select Length and Heights:

● 48 x 96 | 48 x 120 | 48 x 144
● 60 x 96 | 60 x 120 | 60 x 144
● Request custom Lengths and Heights

Doors
Signage
Furniture
Store Fixtures
Shelving
Displays
Work Surfaces
Suspended Panels

Northern Specialty Office

View Project

Think Lightweight Tabletops for Standing Desks Tabletops for Desks Acoustic Desks Acoustic Dividers Acoustic Desk Dividers Acoustic Privacy Desk Divider Tabletop panels Tabletops

London Health Sciences Centre

View Project

Technical Data

	Material Thickness
	3/4″	1″	1-1/4″	1-1/2″	1-3/4″	2″
Skin Thickness	0.118″	0.118″	–	0.118″	0.118″	0.118″
Core Thickness	0.514″	0.764″	–	1.264″	1.514″	1.764″
Max Screw withdrawn Force, LBF	78	87	–	81	–	–
Max Screw Tensile Force, LBF	130	213	–	230	–	–
Max Tensile Strength, PSI	32	52	–	56	–	–
Comp, Strength @5% Strain, PSI	139	125	–	123	–	–
Max Flexure Force, LBF	233	264	–	254	–	–
Modulus of Rupture, PSI	3481	2901	–	1886	–	–
Modulus of Elasticity, PSI	310821	248889	–	214079	–	–
Weight per Panel, LB** ( 49 x 97 )	51	56	–	68	73	79

Packaging Quantity Per Skid

	Material Thickness
Sheet Size	3/4″	1″	1-1/4″	1-1/2″	1-3/4″	2″
48 X 96	64	48	–	32	27	24

* Testing conducted with Varianta Screw HC 013.30.900

** Actual measured weight may vary due to temperature and humidity.
Weight provided is for comparitive analysis only.
